Views: 0 Author: Site Editor Publish Time: 2026-05-18 Origin: Site
In power generation, distribution, and heavy industrial automation, connection integrity directly dictates system uptime. As electrical loads scale rapidly, standard components consistently fail to manage the extreme thermal and mechanical stresses of large conductor cross-sections. You cannot compromise on these critical junctions without risking catastrophic failure.
Engineers face a constant balancing act. They must diligently mitigate power loss and thermal runaway during peak operations. At the same time, they deal with rigid, difficult-to-bend cables ranging from 35 mm² to 300 mm² inside increasingly compact control cabinets. Space remains tight, but performance demands are higher than ever.
This guide deconstructs the essential evaluation criteria for specifying a High Current Terminal Block in demanding power industry applications. It provides a vendor-neutral framework for comparing modern connection technologies, assessing mechanical safety standards, and shortlisting robust components aligned with stringent global compliance requirements.
Thermal Management is Critical: Even microscopic contact resistance (e.g., 0.050 ohms) can generate significant heat loss under continuous high-amperage loads, making material selection paramount.
Application Dictates Connection Type: Bolt/stud connections remain the standard for heavy-duty, low-resistance needs, while push-in/spring technologies are rapidly adopting large cross-section capabilities to reduce installation time by up to 30%.
Safety Margins Are Non-Negotiable: Specifying power terminal blocks requires factoring in at least a 50% current safety margin to account for peak loads and environmental derating.
Lifecycle Engineering Matters: The true cost of high-current components includes planning (CAD/BOM integration) and operation (vibration resistance and maintenance frequency).
High-current connections obey strict physical laws. When dealing with extreme amperage, even minor contact flaws create severe problems. Poor contact inevitably generates friction and heat. Applying Ohm's law reveals a stark reality: excessive resistance rapidly scales wattage loss. For instance, a microscopic contact resistance of just 0.050 ohms under heavy loads transforms a minor junction into a dangerous heating element.
Engineers must carefully match thermal expansion coefficients across all connection points. Utilizing specific high-grade copper alloys proves necessary here. When different metals heat up, they expand at varying rates. This mismatch creates microscopic gaps over time. Oxygen infiltrates these gaps, causing electrolytic corrosion and oxidation. Eventually, the terminal loosens. Selecting materials with harmonized thermal properties prevents this degradation.
Routing large-diameter cables introduces immense physical strain. Technicians often compare bending a 300 mm² copper conductor to bending a solid steel pipe. Standard enclosures rarely offer forgiving internal dimensions. Installers struggle to maneuver these stiff conductors into tight spaces without damaging the surrounding equipment.
You must evaluate the ongoing trade-off between cabinet space and electrical capacity. Modern cabinet designs demand high-density, multi-tier configurations. Laterally entered blocks offer a significant advantage here. They eliminate the need to aggressively bend thick wires. Installers simply slide the rigid cable in from the side, saving substantial panel depth and physical effort.
Many power applications operate in brutally dynamic conditions. Renewable energy skids, maritime power boards, and heavy machinery face constant physical shocks. High-vibration environments expose standard connections to continuous mechanical stress.
Rigid, traditional connections remain highly prone to micro-movements. These tiny shifts compromise the clamping force over time. As the connection weakens, the risk of electrical arcing skyrockets. Arcing destroys components and initiates cabinet fires. Designing for mechanical resilience requires active clamping mechanisms capable of absorbing ambient vibration without losing their grip.
Best Practices for Overcoming Core Challenges:
Specify copper alloys to synchronize thermal expansion rates.
Select lateral-entry terminal blocks for cables exceeding 95 mm².
Deploy dynamic clamping mechanisms in zones subjected to heavy mechanical vibration.
Selecting the correct mechanism dictates both installation efficiency and long-term reliability. We can categorize the dominant connection technologies into three primary groups.
This technology utilizes ring or fork cable lugs firmly secured by robust nuts and bolts. It remains the legacy standard for massive power transmission. You will typically specify these connections for ultra-high currents and extreme cross-sections up to 300 mm².
They deliver the lowest possible contact resistance and the highest mechanical pull-out force. However, they carry significant drawbacks. Installation proves highly time-intensive. Technicians must properly crimp the lugs, align the heavy cables, and use precise torque tooling to secure the bolts. Furthermore, these connections mandate routine retightening to counteract gradual loosening.

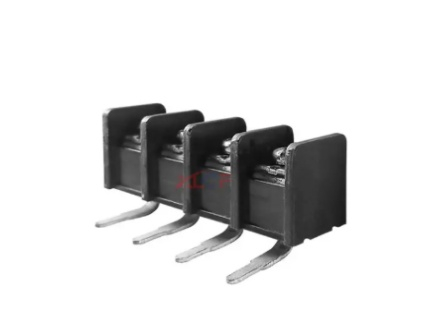

Screw clamps compress the wire directly or via a protective sleeve using a threaded screw mechanism. This method effectively handles high-voltage applications up to 1500V DC. It remains incredibly common in utility-scale photovoltaics and industrial drive systems. Screw clamps perform exceptionally well with multi-strand cables.
Despite its popularity, the technology presents distinct vulnerabilities. Installers often over-tighten the screws, damaging the copper strands. Conversely, under-tightened screws lead to catastrophic thermal events. Like bolt connections, screw clamps are susceptible to gradual loosening under extreme vibration if not actively monitored.
Modern engineering favors lever-actuated or direct-push insertion methods. These systems automatically apply the optimal clamping force without relying on operator torque. You simply open the mechanism, insert the conductor, and release the tension spring.
They offer lightning-fast installation. By eliminating crimping and torquing time, facilities dramatically streamline their panel building. They provide maintenance-free operation and thrive in high-vibration environments. These technologies are now fully capable of handling massive cross-sections up to 185 mm². The primary drawback remains a larger physical footprint in specific configurations. They also require clean wire ends or precisely crimped ferrules for optimal insertion.
Chart: Connection Technology Comparison Summary | |||
Technology Type | Primary Mechanism | Ideal Applications | Notable Drawbacks |
|---|---|---|---|
Bolt and Stud | Ring/fork lugs secured by bolts | Ultra-high currents (up to 300 mm²) | Time-intensive; requires routine retorquing |
Screw Clamp | Direct screw compression | High-voltage (1500V DC); multi-strand wires | Vulnerable to over-tightening and vibration |
Spring / Push-In | Lever-actuated automatic tension | High-vibration zones; rapid installation needs | Larger footprint; strictly requires clean wire ends |
Electrical specifications represent more than maximum capacities. They require strategic buffering. Implement a strict 50% overhead on continuous current ratings. This crucial current margin prevents thermal degradation during unexpected transient spikes. When ambient cabinet temperatures rise, a terminal block loses its ability to dissipate heat efficiently. This safety buffer counteracts environmental derating.
Voltage parameters require equal scrutiny. Grid and solar applications frequently experience open-circuit voltages reaching up to 1500V DC. Evaluate the clearance and creepage distances rigorously. Ample spacing prevents surface tracking across the insulating material. It ultimately safeguards the entire assembly against catastrophic dielectric breakdown.
Human safety must drive component selection. Insist on integrating touch-safe designs into every high-power cabinet. Require an IP20 "finger-safe" rating for all exposed connections. Integrated covers and shrouds protect maintenance personnel from accidental contact during live-panel troubleshooting.
Material flammability acts as your last line of defense. Enclosures must utilize high-grade, flame-retardant materials. Ensure strict adherence to UL94-V0 ratings. High-grade PA66 plastics excel here. If an arcing event occurs, these specific materials self-extinguish rapidly, containing the fault and preventing widespread panel fires.
Modern power distribution rarely remains static. Evaluate the ability to stack individual blocks into cohesive, single-unit assemblies. This modularity allows engineers to build customized load centers tailored to specific machine requirements.
Assess compatibility with standardized potential distribution accessories. High-quality systems utilize pluggable bridge jumpers. These accessories rapidly distribute power across multiple poles without requiring complex, daisy-chained wiring. Reducing wiring complexity inherently minimizes potential points of failure.
Table: Essential Safety & Material Specifications | ||
Specification | Requirement Standard | Engineering Purpose |
|---|---|---|
Touch Safety | IP20 Rating | Prevents accidental human contact with live conductive elements. |
Flammability | UL94-V0 | Ensures housing self-extinguishes within 10 seconds without flaming drips. |
Insulation Material | PA66 (Polyamide) | Provides superior dielectric strength and high tracking resistance. |
The journey of integrating a High Current Terminal Block begins long before physical assembly. Modern engineering heavily relies on digital planning tools. Assess whether the manufacturer provides robust CAD data and digital configurator software.
Tools like WMC or clipx ENGINEER allow teams to simulate exact cabinet space. Engineers can generate error-free Bills of Materials (BOMs) instantly. They plan precise DIN-rail layouts before initiating physical procurement. Consider sourcing pre-assembled, DIN-rail-mounted blocks. This strategy drastically consolidates active SKUs and streamlines warehouse logistics.
Key Digital Planning Steps:
Import digital 3D models into your primary cabinet design software.
Simulate clearance distances to ensure compliance with creepage standards.
Validate lateral space for thick cable bending radii.
Export a consolidated BOM directly to your procurement team.
Wrangling rigid copper conductors demands immense physical exertion. Look for specific features designed to free up the installer's hands. Open-locking mechanisms represent a massive ergonomic upgrade. The technician locks the clamping unit open, enabling them to use both hands to position the heavy wire precisely.
Lateral conductor entry also drastically improves installation ergonomics. Instead of forcing a thick cable downward into a tight gap, the installer feeds it naturally from the side. These small design choices significantly reduce labor hours and minimize repetitive strain injuries on the assembly floor.
Acknowledge a sobering industry reality: nearly 30% of industrial electrical failures stem directly from improper maintenance. Technicians routinely miss early signs of corrosion, thermal buildup, and loose connections. Proper component selection directly addresses these operational blind spots.
Prioritize blocks featuring clear, standardized marking systems. Ambiguous labeling leads to dangerous testing errors. Furthermore, demand integrated testing points. These access ports allow technicians to perform automated or routine voltage checks safely. They can verify circuit integrity without dismantling the physical connection or exposing themselves to live busbars.
A legitimate supplier must provide highly transparent documentation. International standards serve as the baseline for grid safety. Demand certified compliance for CE and RoHS. Ensure the manufacturer operates under strict ISO 9001 quality management guidelines.
Additionally, investigate specific UL and IEC ratings relevant to the power sector. High-voltage energy storage, for example, strictly requires adherence to UL 1973 and IEC 62619 related connection standards. Lacking these certifications immediately disqualifies a vendor from critical infrastructure projects.
Marketing claims require empirical validation. Ensure the prospective supplier conducts rigorous in-house testing. Request their data on short-circuit withstand strength. A truly robust block must survive massive amperage spikes without structural deformation.
If you build offshore marine panels, demand salt spray corrosion test results. Ocean environments destroy inferior metals rapidly. Furthermore, verify their thermal cycling data. Continuous expansion and contraction testing accurately predict long-term field reliability.
Common Mistakes in Vendor Selection:
Accepting generic quality statements instead of requesting exact test reports.
Ignoring the vendor's environmental testing capabilities.
Failing to audit the supplier's internal quality control processes.
Evaluate the vendor's fundamental ability to support scalable manufacturing. Do they offer custom configurations out of the box? Assess their capacity for providing specialized emergency power supply connections.
Heavy infrastructure projects frequently encounter unexpected engineering hurdles. Determine if the supplier offers localized engineering support. Having access to responsive technical experts prevents minor integration issues from causing major project delays. A reliable supply chain acts as an extension of your own engineering team.
Specifying a heavy-duty connection is never a generic commodity purchase. It stands as a fundamental safety and reliability decision for critical power industry infrastructure. Making the right choice eliminates thermal bottlenecks, accelerates panel construction, and aggressively guards against catastrophic arc flash events.
Transition from theoretical specifications directly to physical validation. Do not rely solely on datasheets. Engineering teams should immediately request product samples to evaluate clamping mechanisms firsthand. Demand exact contact resistance data to verify thermal safety claims. Finally, integrate their digital CAD models into your software to test precise spatial integration within your specific cabinet environments. Taking these concrete steps guarantees a safer, far more resilient power distribution network.
A: Standard engineering practice dictates a 50% safety margin above the maximum expected continuous operating current. This buffer accounts for environmental heat accumulation and prevents terminal melting during unexpected load spikes.
A: Yes, modern spring and lever-actuated technologies can now handle up to 185 mm² cross-sections and currents over 300A. They are increasingly preferred in high-vibration applications because they provide dynamic, maintenance-free clamping force, unlike bolted connections which may require periodic retorquing.
A: IP20 signifies "finger-safe" protection. In high-power cabinets, this prevents accidental personnel contact with live conductive elements, dramatically reducing the risk of fatal shocks or arc flashes during routine maintenance.
A: UL94-V0 is a stringent plastics flammability standard. It ensures that in the event of an electrical fault causing overheating or arcing, the terminal block housing will self-extinguish within 10 seconds and will not produce flaming drips, preventing cabinet fires.
