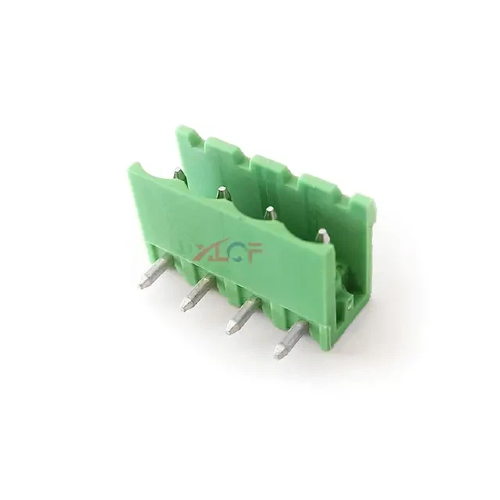

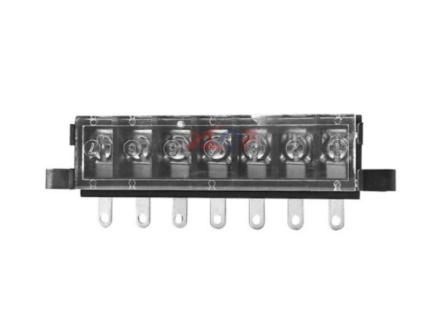

A Pluggable Terminal Block is an electrical component used to connect wires to electrical devices in a secure, efficient, and easy-to-manage manner. Unlike traditional terminal blocks, pluggable terminal blocks consist of two parts: the plug (male) and the socket (female). These two components allow for a quick and easy electrical connection or disconnection. The key benefit of these terminal blocks is that they are modular, allowing easy installation, disconnection, and maintenance without the need for specialized tools.
Pluggable terminal blocks are widely used in various industrial and automation applications, where quick installation and maintenance are essential. They are designed to accommodate a range of wire sizes, offering flexibility in system design. Made from durable materials, such as brass, phosphor bronze, or stainless steel, pluggable terminal blocks ensure reliable connections even in harsh environments.
Vibrations are a common phenomenon in many industrial environments, particularly in sectors such as manufacturing, automotive, energy, and robotics. Whether from machinery, engines, motors, or other mechanical systems, vibrations can impact the stability of electrical connections.
In environments with high levels of vibration, connections can loosen over time, leading to poor conductivity, intermittent failures, or even complete electrical outages. In some cases, loose connections could cause arc flashes or lead to catastrophic equipment failures, which could pose safety hazards.
Given these risks, it is critical to ensure that electrical components, especially pluggable terminal blocks, remain secure and stable under vibratory conditions. The design and installation of terminal blocks must factor in the impact of vibration on connection integrity.
Traditional screw-based terminal blocks or screwless terminal blocks are typically less effective in environments subject to vibrations. Over time, the repetitive mechanical motion caused by vibrations can result in loosening of screws or reduced contact pressure, leading to unreliable electrical connections. As the connections weaken, electrical resistance increases, resulting in heat generation that can damage sensitive components and disrupt operations.
Additionally, corrosion may occur if moisture is introduced, exacerbating the issue. Physical movement and wear due to vibration can also result in mechanical stress on the connection points, further affecting their performance and reliability.
Vibration-intensive environments require electrical components that not only provide stable connections but also offer mechanical resilience to maintain their integrity over long periods. In these settings, pluggable terminal blocks stand out because of their ability to adapt and provide secure connections under dynamic conditions.
The main challenge in such environments is ensuring that the terminal block maintains constant contact pressure to avoid contact resistance, minimizing electrical losses, and preventing damage to the equipment. For this reason, terminal blocks used in vibration-prone applications must be designed to absorb or resist mechanical forces.
Pluggable terminal blocks are often designed with features that enhance their stability in vibration-prone environments. Some of these design features include:
Spring-loaded mechanisms to maintain pressure on the connections.
Locking clips or snap-in features to secure the terminal blocks in place and prevent accidental disconnections.
Anti-vibration housing to shield sensitive components from external forces.
One of the key advantages of pluggable terminal blocks in vibration environments is the inclusion of spring-loaded terminals. These terminals are designed to maintain constant pressure between the wire and the contact, even under continuous vibrations.
The spring mechanism compensates for any minor movement or displacement caused by vibration, ensuring that the electrical connection remains secure and reliable. By keeping the contact pressure consistent, spring-loaded terminals reduce the risk of loose connections that can lead to electrical failures or faults.
In addition to spring-loaded features, locking mechanisms are an essential component of vibration-resistant pluggable terminal blocks. These mechanisms, which may include snap-in clips or locking screws, ensure that the terminal block remains securely in place within the circuit.
The locking feature prevents unintentional disconnections that may occur due to vibration-induced movement. In high-vibration environments, where traditional screw-based connections might loosen over time, locking mechanisms offer a more reliable solution for ensuring the integrity of the electrical system.
The materials used in pluggable terminal blocks play a significant role in ensuring their durability and resistance to vibration-induced wear. Materials like phosphor bronze and brass are commonly used for the contacts due to their excellent conductivity and corrosion resistance.
The housing of the terminal block is often made from thermoplastic or high-strength polymers that can withstand mechanical stress and heat generated by the electrical system. These materials also contribute to the terminal block's ability to endure vibration, ensuring that the electrical connection is maintained under dynamic conditions.
The housing design is crucial in protecting the internal components of the terminal block from external mechanical forces. Vibration-resistant housing ensures that the internal spring-loaded contacts and lockings are securely positioned and protected from damage.
Some pluggable terminal blocks are also designed with additional shock-absorbing features in the housing, such as rubber seals or damping pads, which further reduce the impact of vibration on the internal components.
Proper installation of pluggable terminal blocks is essential for ensuring their stability in vibration-prone environments. The terminal blocks should be securely mounted to prevent any loose fitting that could lead to movement or stress on the connections. Here are some best practices for mounting:
Technique | Description |
DIN rail mounting | Pluggable terminal blocks are commonly mounted on DIN rails, which provide a solid foundation for secure installation. |
Locking mechanisms | Use terminal blocks with locking clips or snap-in features that lock them in place to prevent unintended disconnections due to vibration. |
Avoiding stress points | Position terminal blocks in such a way that the wiring is evenly distributed and there are no areas where stress can accumulate due to vibrations. |
Proper contact pressure is crucial for maintaining a stable electrical connection. Pluggable terminal blocks with spring-loaded terminals are ideal in this regard, as they automatically adjust the pressure to ensure optimal contact with the wire.
When installing terminal blocks, it's important to ensure that the spring tension is calibrated properly to achieve the correct pressure. Too little pressure could result in a loose connection, while too much pressure might cause damage to the wire or premature wear on the terminal block.
In addition to proper mounting and contact pressure, dampening systems can be used to reduce the effects of vibration on the terminal block. These systems may include:
Rubber dampeners placed around the terminal block.
Shock-absorbing pads integrated into the housing design to protect the terminal block from external mechanical forces.
By incorporating these support systems, the stability of the pluggable terminal block can be further enhanced, ensuring long-term reliability in vibration-prone environments.
To ensure that pluggable terminal blocks meet the requirements for use in vibration-prone environments, they must be tested according to industry standards. International standards, such as IEC 60068-2-6 (Environmental testing — Part 2-6: Tests — Test Fc: Vibration), outline the procedures and conditions for testing the vibration resistance of electrical components.
These tests evaluate how well the terminal blocks withstand different vibration frequencies and amplitudes without compromising their electrical performance.
Before being introduced into the market, pluggable terminal blocks are subject to rigorous testing and certification processes. Certifications such as UL (Underwriters Laboratories) and CE (Conformité Européenne) ensure that the terminal blocks meet the required safety and performance standards for use in vibration-prone environments.
Manufacturers must also submit their products for third-party testing to verify their vibration resistance and ensure they meet the necessary regulatory requirements for industrial applications.
When selecting pluggable terminal blocks for use in vibration-prone environments, it is important to consider their vibration resistance ratings. Choose products that are specifically tested and rated for use in high-vibration environments to ensure optimal performance and safety.
In the automotive sector, vehicles experience significant vibrations from the engine, suspension, and wheels. Pluggable terminal blocks are used to connect electrical components, such as sensors and actuators, while ensuring stable connections even in high-vibration conditions.
Power plants and renewable energy systems, including wind and solar power stations, often operate in environments where machinery and generators generate continuous vibrations. Pluggable terminal blocks help maintain stable electrical connections in these systems, ensuring reliable energy transmission.
In automated assembly lines and robotics, pluggable terminal blocks are commonly used to connect and disconnect components with ease. These systems are subject to constant vibrations during operation, and pluggable terminal blocks ensure that reliable connections are maintained throughout the lifecycle of the equipment.
Pluggable terminal blocks provide a reliable, efficient, and flexible solution for electrical connections in vibration-prone environments. With unique design features such as spring-loaded terminals, locking mechanisms, and high-quality materials, they ensure secure connections even in dynamic conditions. These features help maintain the integrity of electrical systems in industries where vibration is inevitable.
By following proper installation techniques and considering vibration resistance ratings, you can ensure that your systems remain stable and efficient, minimizing both downtime and maintenance costs in vibration-heavy environments. As industries continue to evolve and embrace new technologies, pluggable terminal blocks will remain at the forefront of electrical connection solutions, supporting advancements in smart manufacturing, robotics, and automation.
