FE 10-10.16-00-XX
Center Space | 10.16mm |
Wire Range | 20-6AWG |
Screw Torque | 13 lbf.in |
Rated Current | 600V,65A |
Surge Voltage | 4000V |
Insulation Body | PA66,UL94,V-0 |
Screw Material | M4,STEEL |
Terminal Body | BRASS |
Temperature | -40C-105°C |

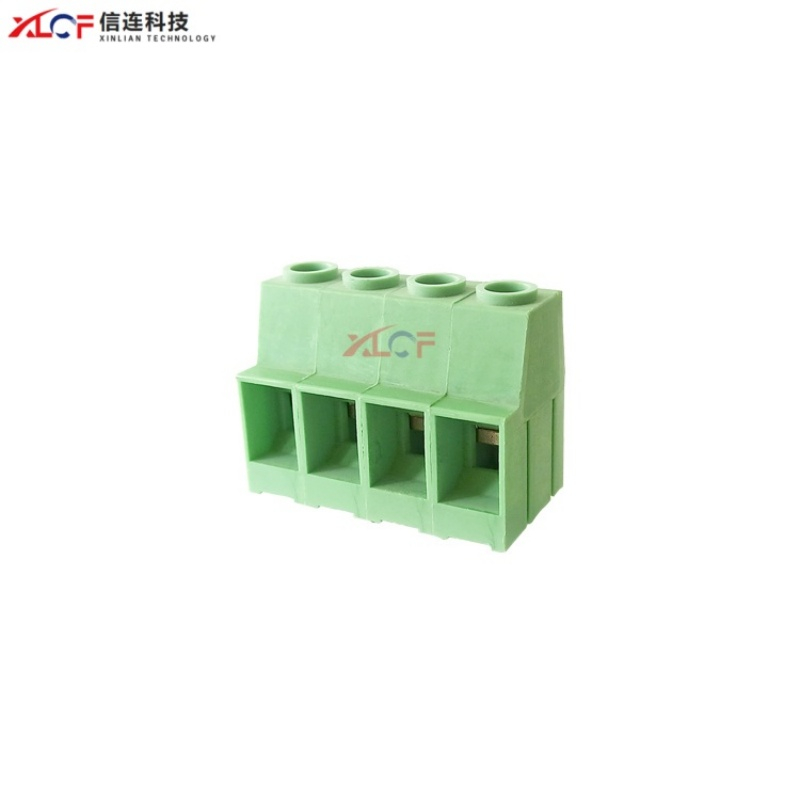

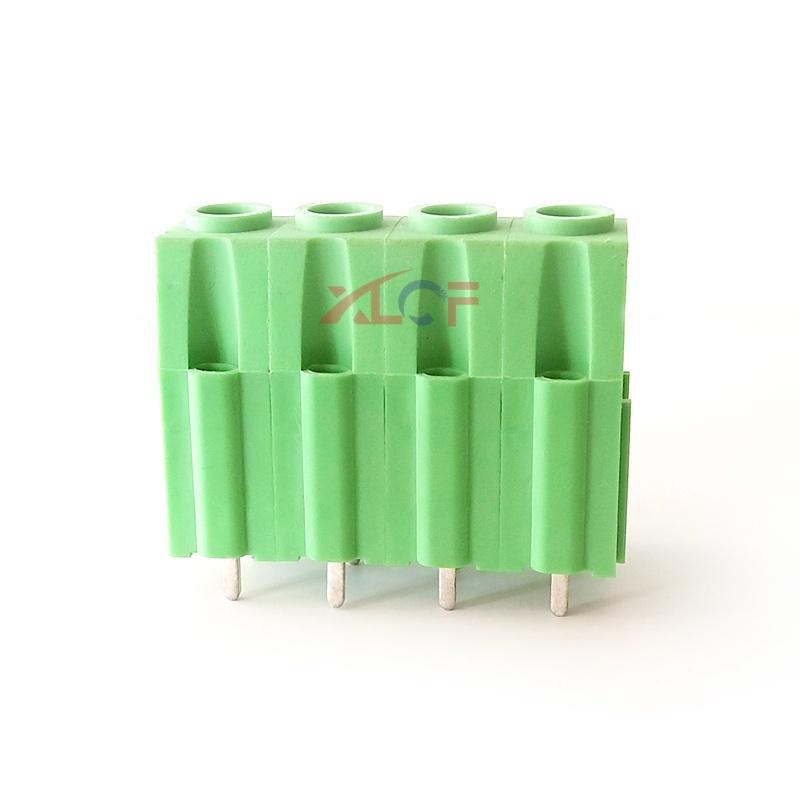

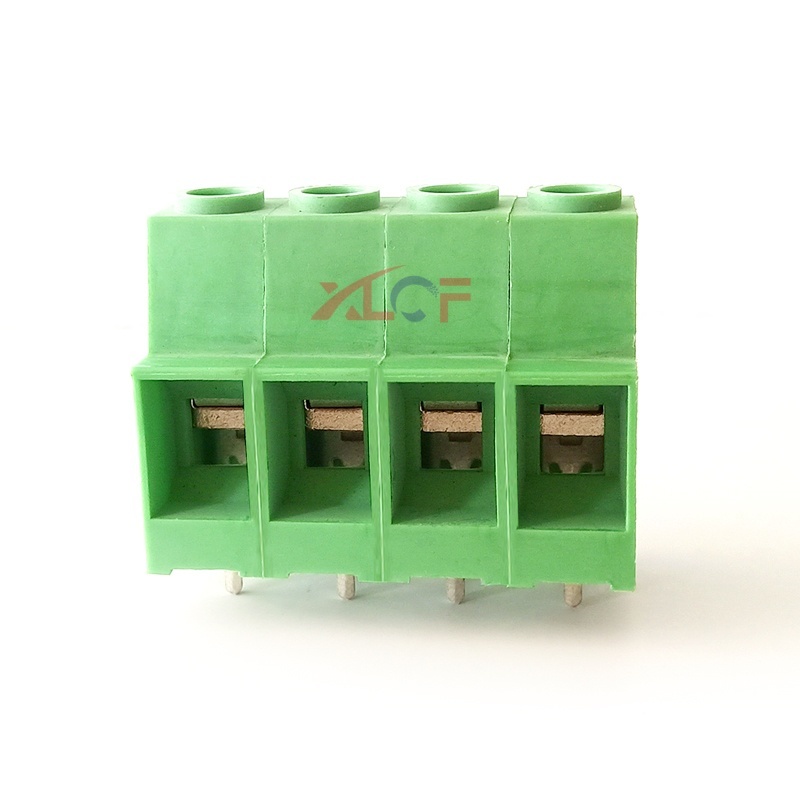

Our CE certified 10.16mm pitch high current PCB screw terminal block (Model: FE 10-10.16-00-XX) is engineered for robust power circuits and industrial control cabinets. Designed with a flame-retardant PA66 shell and high-conductivity copper alloy conductors, our premium through-hole connector ensures stable and secure wiring for heavy-duty environments. We provide compliant, durable, and custom system connection solutions tailored specifically for the global power electronics sector.
The advanced screw crimping mechanism provides exceptionally firm and reliable wiring for heavy-duty applications. It is designed to be highly resistant to vibration and accidental loosening, which guarantees consistently secure electrical connections even during long-term operation in harsh industrial environments.
Engineered with a standard 10.16mm spacing, our versatile industrial control connector aligns perfectly with established international PCB layout norms. Its optimized direct insertion soldering architecture seamlessly accommodates both traditional wave soldering and modern reflow soldering techniques, offering remarkable convenience during equipment assembly.
Crafted from premium-grade PA66 nylon, the robust insulation body achieves a stringent UL94 V-0 fire rating. This PA66 flame retardant terminal guarantees outstanding high-temperature resistance, remarkable anti-aging properties, and superior electrical insulation, meeting the safety expectations of high-end overseas markets.
Fitted with carefully selected, high-conductivity tin-plated copper alloy conductors, our terminal block minimizes contact resistance while maximizing conductivity. Designed for high current specifications and compatible with 10mm² wires, it reliably handles a rated current of up to 50A. It safely supports high-power transmission loads, making this high current terminal block the definitive choice for demanding power modules.
We ensure that our extensive range of electrical connectors complies strictly with IEC international standards. Fully backed by CE and RoHS certifications , these safe and eco-friendly terminal blocks eliminate export barriers and seamlessly integrate into your global supply chain.
These connectors act as vital components within industrial control cabinets and major power distribution units. They facilitate safe power circuit wiring and uninterrupted high-power current transmission, maintaining system stability across complex automated manufacturing setups.
Our terminal blocks are perfectly suited for demanding applications such as frequency inverters, precision servo drives, and heavy-duty UPS power supplies. They function flawlessly as dependable input and output terminals for main circuits that require large wire diameters.
They are widely applied within the internal PCB wiring of modern photovoltaic inverters and advanced energy storage devices. Capable of handling extreme loads, they effectively manage high-safety wiring scenarios critical to the performance of next-generation green power electronics.
Xinlianchuangfu operates with unparalleled automation coverage within the terminal sector. By utilizing independently developed multi-material stamping dies alongside more than one hundred automatic assembly machines, our factory guarantees remarkable production efficiency, impeccable product consistency, and the capacity to handle massive volume orders.
Our comprehensive quality management system strictly adheres to the highest international technical standards. Holding prestigious certifications including UL, CUL, CE, and CQC, we ensure that every custom or standard terminal block we supply delivers rock-solid performance, cementing our status as your dependable business partner.
Rated current: 65 A. Rated voltage: 600 V.
It supports a wire cross-sectional area of 10 mm², including single-strand and multi-strand copper wires. It can be directly screwed in without the need for cold crimping.
The shell is made of UL94 V-0 flame-retardant PA66 nylon. The conductor utilizes high-conductivity tin-plated copper alloy. The working temperature range is -40 °C to +125 °C, and it is RoHS compliant.

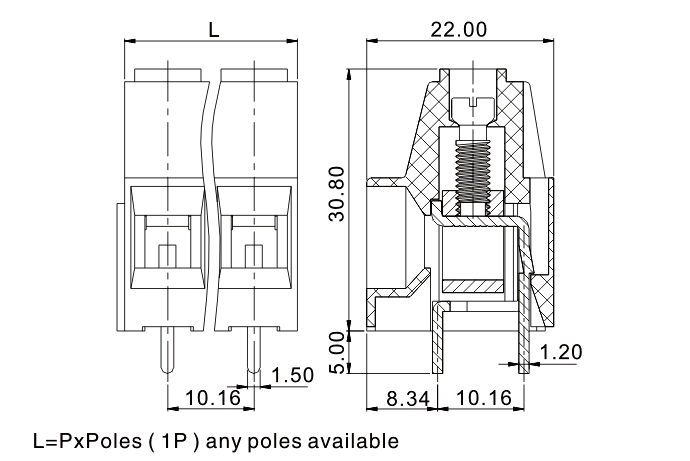

It uses PCB direct insertion soldering and supports both wave and reflow soldering. The 10.16mm spacing is perfectly compatible with standard high-power PCB pad designs.
