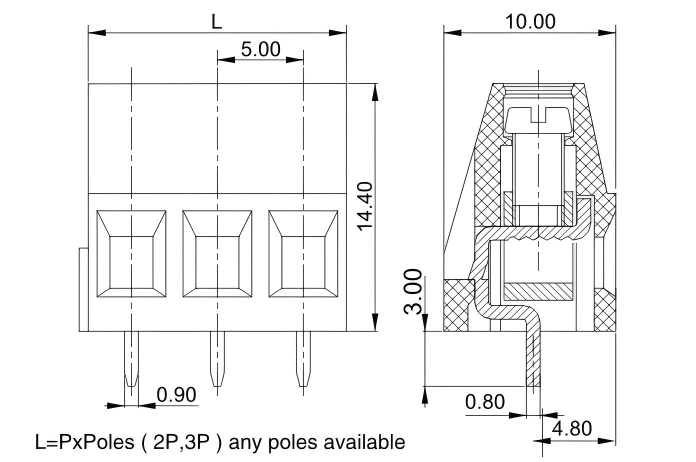

Center Space | 5.00mm |
Wire Range | 30-14AWG |
Screw Torque | 3lbf.in |
Rated Current | 300V,15A |
Surge Voltage | 4000V |
Insulation Body | PA66,UL94,V-0 |
Screw Material | M3,STEEL |
Terminal Body | BRASS |
Temperature | -40°C-105°C |
FE 1.5-5.00-00-XX

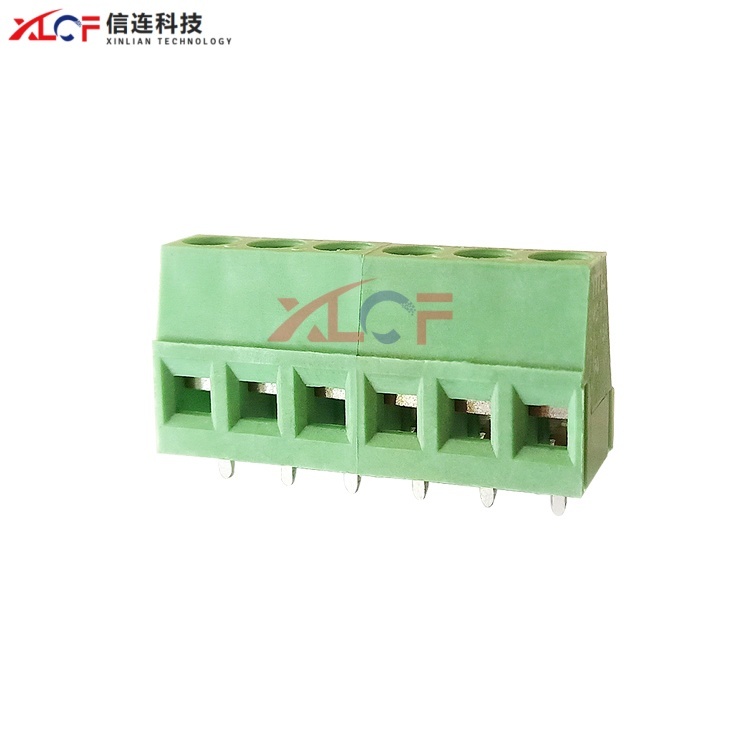

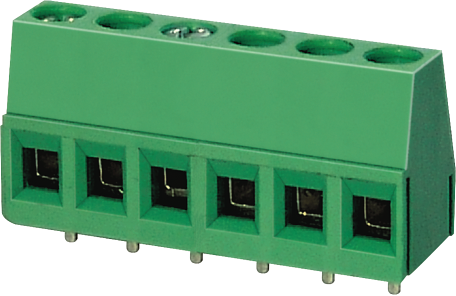

Our flame retardant PA66 PCB screw terminal connectors deliver reliable wire connections and stable signal transmission for complex industrial environments. Designed with a standard 5.00mm pitch, these European style components accommodate high-density printed circuit board layouts seamlessly. They utilize top-grade materials to ensure continuous operations within demanding electrical control cabinets and automated machinery. We engineer our industrial control connectors to meet stringent CE certification requirements, providing a highly dependable solution for your sophisticated power distribution systems.
These 5.00mm pitch terminal blocks comply strictly with established DIN standards to guarantee effortless integration across various platforms. They fit perfectly into mainstream frequency converters, precision sensors, and programmable logic controllers. The standardized pin dimensions align perfectly with standard PCB pads to support both wave soldering and reflow soldering production processes. We designed the connection interface to withstand standard industrial vibrations effectively.
We construct the durable housing using UL94 V-0 flame retardant PA66 nylon to provide exceptional resistance against high temperatures and chemical corrosion. The internal conductive parts feature high-quality tin-plated brass, ensuring maximum conductivity and reliable anti-oxidation properties. This robust material combination secures long-term operational stability even in extremely harsh industrial conditions. The screw tightening torque of 0.4-0.6 N · m ensures consistent anti-loosening performance.
Our CE certified terminal block utilizes a highly efficient screw crimping method compatible with both multi-strand and single-strand copper wires. This intelligent design completely eliminates the necessity for specialized cold-pressed terminals during standard installation procedures. Operators can quickly secure the wiring connections using standard tools, significantly reducing your on-site construction costs and routine maintenance time. The modular splicing design adapts to different wiring needs effortlessly.
The premium tin-plated copper components combined with the anti-aging PA66 shell ensure sustained electrical performance without premature degradation. Our rigorous factory testing procedures guarantee a high insulation withstand voltage and consistently low contact resistance. You can trust our PCB screw terminal connectors to maintain secure power transmission under continuous and heavy industrial use. The IP20 basic protection level prevents accidental finger electric shocks effectively.

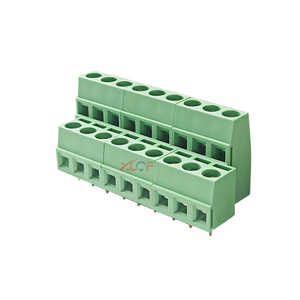

We supply versatile modular designs ranging from 2P to 24P to accommodate your specific circuit routing demands easily. You can select custom configurations, including varying housing colors like black, gray, or green, and optional functional upgrades. This manufacturing flexibility allows precise alignment with your unique equipment design constraints and specialized project requirements. We can also provide double-layer structures or models with testing holes.
The compact 5.00mm center spacing actively minimizes the required footprint on your valuable printed circuit boards. This space-saving attribute proves invaluable for developing modern, miniaturized industrial devices and tightly packed electrical enclosures. Our highly compact footprint achieves this without compromising the critical electrical safety or the mechanical holding force of the connections. You achieve a cleaner board layout while maintaining superior electrical isolation.
These versatile components establish highly secure signal and power wiring for complex PLC modules, comprehensive control cabinets, and advanced servo drives. They maintain stable current flow during extended operational cycles, preventing unexpected system downtime. By integrating our connectors, engineers ensure the control signals remain entirely free from external interference. This solid foundation supports the continuous functioning of your most demanding industrial control infrastructure.
They provide resilient and stable wiring connections for critical automated machinery, including precision industrial sensors, responsive actuators, and heavy-duty solenoid valves. The robust mechanical grip handles the constant vibrations generated by active mechanical systems without loosening. This continuous reliability allows your automated production lines to operate smoothly without requiring frequent maintenance checks. We build these connectors to endure the physical stress of modern automated environments.
Our engineered connectors facilitate efficient internal PCB wiring for intricate power distribution modules, sensitive instrumentation panels, and reliable commercial security equipment. The high insulation withstand voltage protects delicate internal components from unexpected power surges effectively. This protective capability ensures your critical electrical distribution networks maintain operational integrity during challenging load variations. You can safely deploy them across various low-voltage European electrical systems.
Operating advanced automation facilities, we utilize self-developed multi-material stamping dies to maintain exceptional manufacturing precision. We maintain over a hundred automatic assembly machines to ensure high-volume production efficiency and consistent product quality across all batches. Our specialized focus on power electronics enables us to deliver tailored electrical connection solutions designed precisely for your specific functional demands. We continuously invest in intelligent manufacturing technologies.
We enforce rigorous quality control measures strictly aligned with industry, national, and international technical standards throughout our entire manufacturing process. Our robust production facilities hold multiple critical compliance certifications, ensuring every single component meets extremely demanding safety and performance criteria. We prioritize reliable partnership guarantees, empowering your enterprise with highly dependable supply chains and continuous product improvements. Your operational success remains our primary objective.
They accommodate single or multi-strand copper wires with a cross-sectional area of 0.5-1.5 mm, corresponding to AWG 22-16, utilizing direct screw crimping without cold terminals.
The components safely support a rated current of 10-15A and a rated voltage of 300-400V, featuring an insulation withstand voltage of AC 2000V/1 min and contact resistance under 20 mΩ.
The installation process utilizes PCB direct insertion soldering. The pin design adapts seamlessly to standard 5.00mm spacing pads, fully supporting both standard wave soldering and reflow soldering techniques.
