| Quantity: | |
|---|---|
Center Space | 5.00mm |
Wire Range | 20-14AWG |
Rated Current | 3000V.15A |
Surge Voltage | 4000V |
Insulation Body | PA66,UL94,V-0 |
Terminal Body | BRASS |
Temperature | -40°C-105°C |

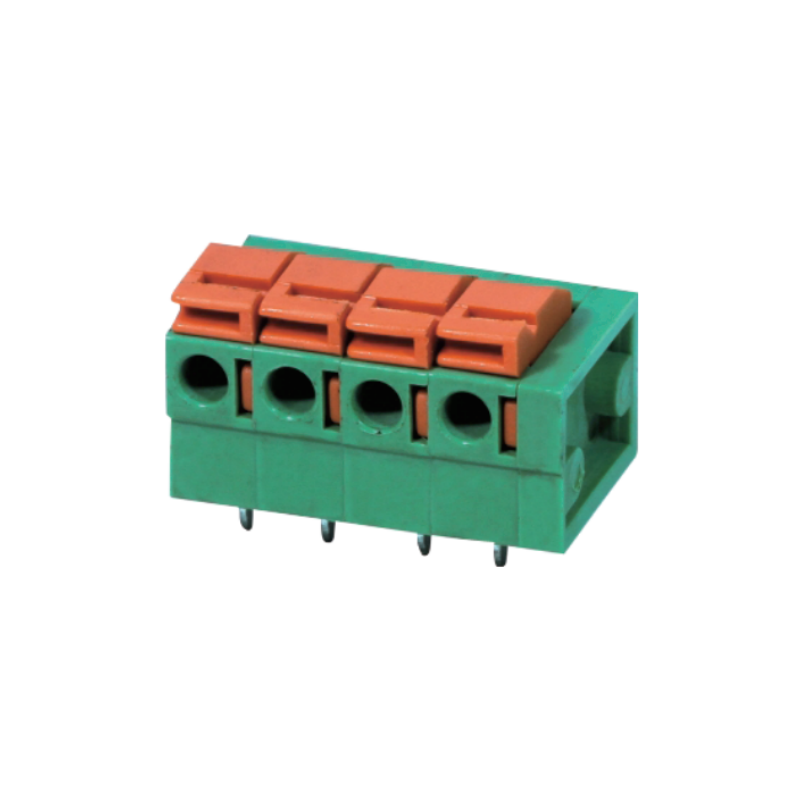

FKD 2-5.00-02-XX

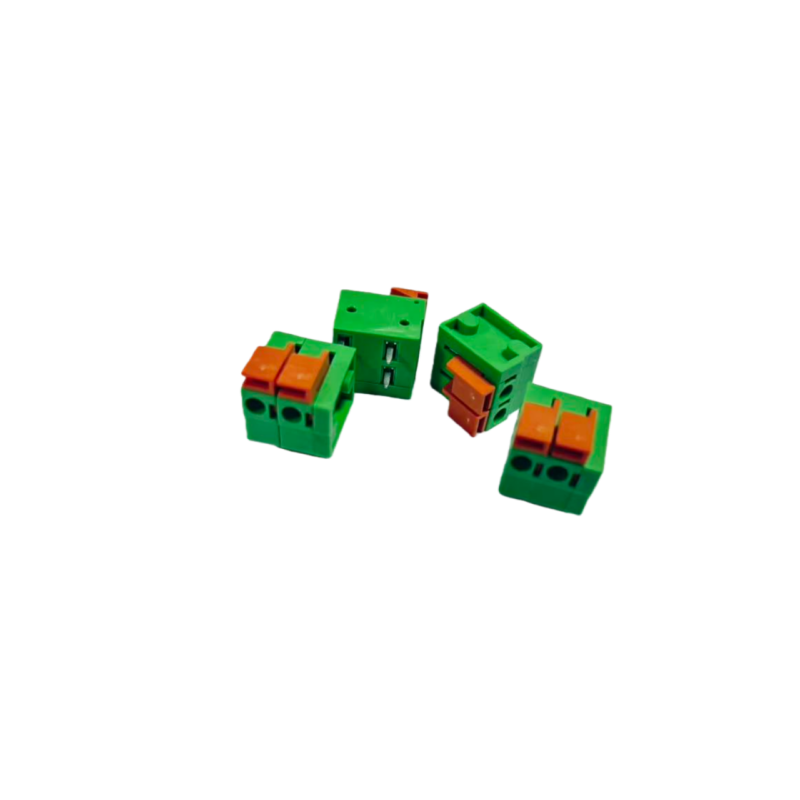

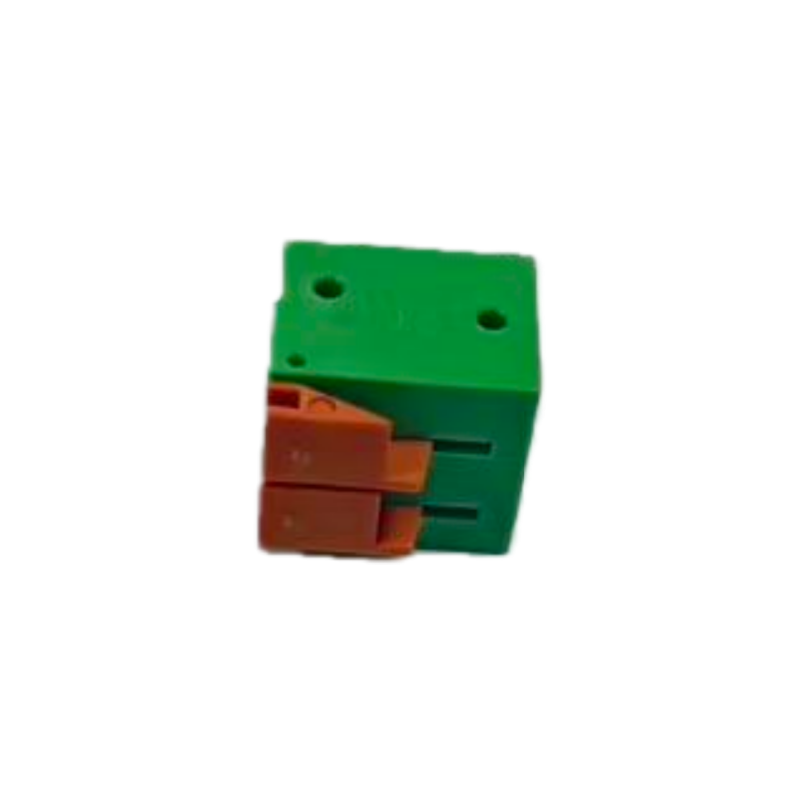

Specially engineered for demanding industrial environments, our premium 5.00mm pitch spring cage connection terminal block delivers fast and reliable performance.Supported by our advanced production capabilities, our products are designed to deliver fast, reliable, and completely tool-free electrical connections. This specific terminal block utilizes an innovative spring elastic structure to replace traditional screw tightening, ensuring optimal wire compression. Whether upgrading complex control cabinets or electronic control equipment, our spring type terminal block provides constant contact force for seamless circuit convergence.
Our industrial automation terminal block is equipped with a highly fatigue-resistant stainless steel spring, delivering continuous and constant contact pressure. This advanced clamping structure automatically compensates for wire thermal expansion, contraction, and stress relaxation, virtually eliminating long-term heating and ignition hazards. Furthermore, the internal conductive components are stamped from high-conductivity tinned copper alloy, securing an exceptionally low contact resistance. Encased in a flame-retardant PA66 insulated housing, the unit maintains stable current carrying capacities while strictly meeting stringent industrial anti-interference requirements.
The pre-assembled, fixed 4-pole configuration of our 4-pole terminal block offers a significant structural advantage during installation. Featuring a total length of 20mm, this design fits perfectly into standard 35mm-wide industrial enclosures, entirely removing the need for modular assembly on site. This streamlined approach minimizes wiring complications and reduces installation time by up to 40% compared to traditional custom pole systems. Additionally, the integrated pole dividers, molded with glass-fiber reinforced PA66, prevent wire contact and withstand extreme physical stress in high-vibration applications.
Engineered for utmost versatility, our 5.00mm pitch terminal block serves as an ideal solution for a multitude of heavy-duty industrial applications. It is widely implemented within industrial automation systems, three-phase equipment control cabinets, power distribution networks, and sophisticated electrical machinery. By readily accommodating a wire diameter range of 0.08-150mm², it seamlessly adapts to the strict requirements of dense wiring scenarios. Designed explicitly for DIN rail mounting, this DIN rail terminal block guarantees long-lasting and secure electrical connections across diverse energy transmission facilities.
Securing a dependable supplier is vital for maintaining the integrity of your power electronics projects. We specialize in comprehensive terminal solutions, integrating meticulous new product development with large-scale automated manufacturing. Our facility utilizes self-developed multi-material stamping dies and fully automated assembly lines, maximizing production efficiency and ensuring absolute consistency across bulk orders. Backed by rigorous international certifications including UL, CUL, CE, and CQC, our factory is fully equipped to deliver tailored electrical connection products that accurately meet your most specialized requirements.

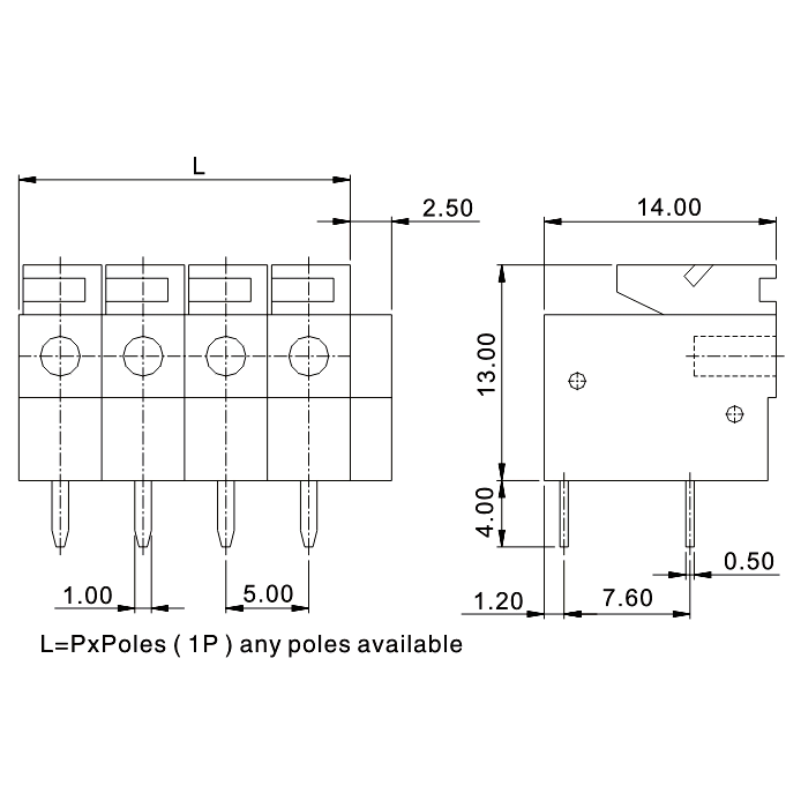

The 5.00 indicates a fixed terminal spacing of 5.00mm. This specific pitch is highly optimized for 3-phase grounded wiring or 4-circuit distribution commonly found within industrial systems.
Technically yes, but it is overspecified. The 3000V 15A rating is designed for industrial use; residential applications would benefit from a lower-power terminal block for cost and space efficiency.
Strip 12mm of insulation from the wire to ensure full contact. Twist stranded 8 AWG wires tightly to prevent fraying, and use the spring buckle on the terminal to secure it.
